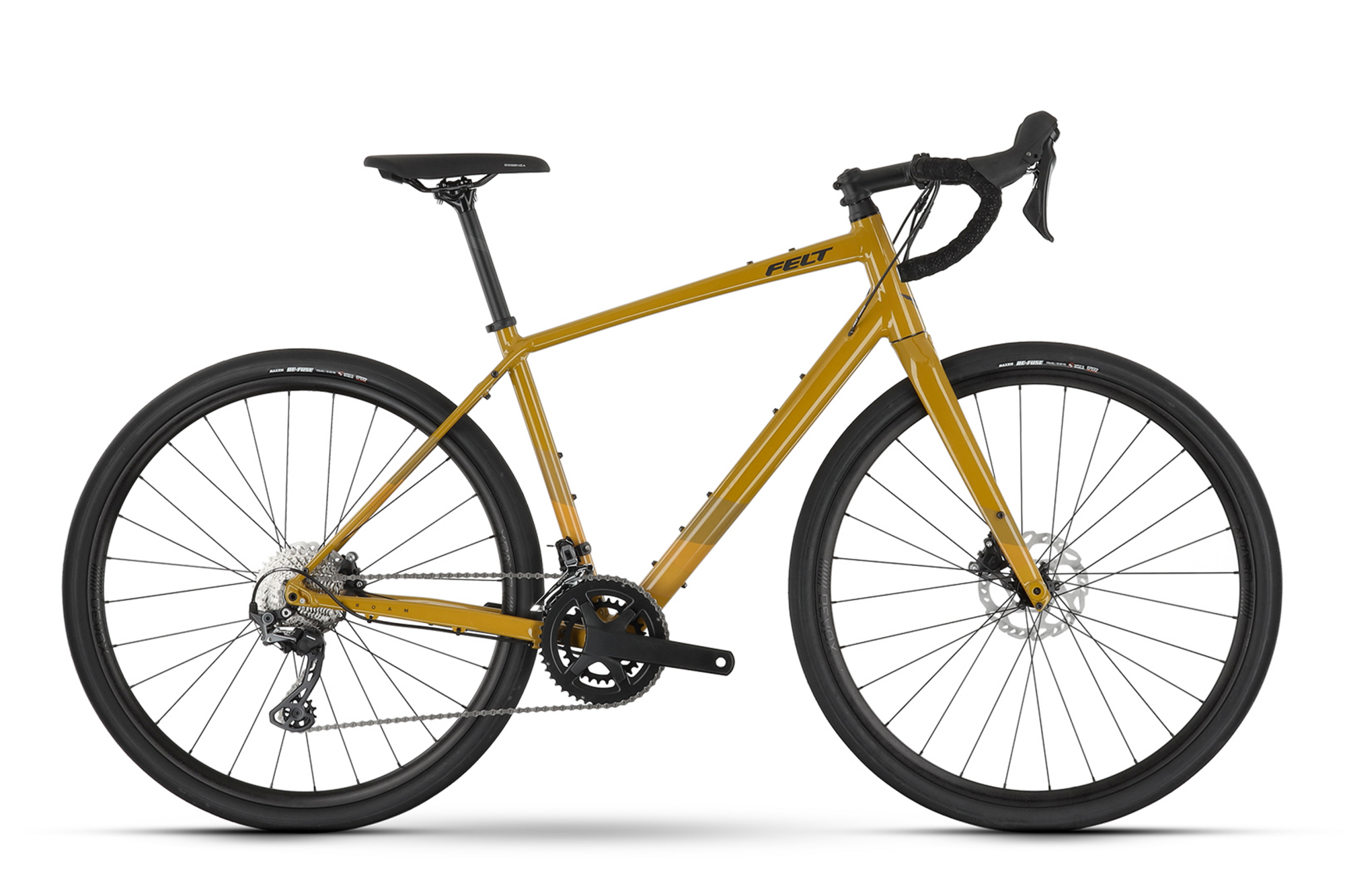

Felt Bicycles BROAM 30

Felt Bicycles BROAM 30
$2,699.00
Color: Caramel
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

The BROAM is a comfortable, capable bike designed to fit a variety of purposes from road cycling, to commuting, to bikepacking. Its durable aluminum frame comes with a carbon fork to smooth the road vibrations and the platform is equipped with various eyelets and mounting spots for racks, fenders, and more. The most capable road bike we make, it’s everything you want in a road bike and then some. Just make sure to bring along your sense of adventure...any maybe your passport.

Geometry

Sizes:
SIZE47cm51cm54cm56cm58cm61cm
(A) Top Tube Length 530 mm 535 mm 555 mm 570 mm 580 mm 595 mm
(B) Seat Tube Length 410 mm 435 mm 460 mm 485 mm 515 mm 545 mm
(C) Seat Tube Angle 74 ° 74 ° 74 ° 73 ° 73 ° 73 °
(D) Head Tube Length 125 mm 145 mm 165 mm 180 mm 200 mm 220 mm
(E) Steering Angle 70.5 ° 70.5 ° 71 ° 71 ° 71 ° 71 °
(F) Chain Stay Length 450 mm 450 mm 450 mm 450 mm 450 mm 450 mm
(G) Wheel Base 1039 mm 1045 mm 1056 mm 1066 mm 1076 mm 1092 mm
(H) Standover Height 688 mm 713 mm 720 mm 762 mm 790 mm 818 mm
(I) BB-Drop 72 mm 72 mm 72 mm 72 mm 72 mm 72 mm
(K) Fork Offset 50 mm 50 mm 50 mm 50 mm 50 mm 50 mm
(L) Stack 551 mm 570 mm 591 mm 605 mm 624 mm 643 mm
(M) Reach 372 mm 371 mm 380 mm 385 mm 389 mm 399 mm
(N) Stem Length 80 mm 90 mm 100 mm 100 mm 110 mm 120 mm
(O) Crank Length 165 mm 170 mm 172.5 mm 172.5 mm 175 mm 175 mm
Sizes:
SIZE47cm51cm54cm56cm58cm61cm
Rider Height (IN)5’0” - 5’5” 5’5” - 5’8”5’8” - 5’10"5’10” - 6’0”6’0” - 6’2”6’2” - 6’5”
Rider Inseam (IN)28” - 29.5” 29.5” - 30.3”29.9” - 32.3”31.9” - 33.5”33.1” - 34.3”34.3” - 35.9”

Specs

Pedals Sold Separately
Fork Felt Gravel, UHC Performance carbon with aluminum steerer tube
Stem Devox StemR.A2
Chain Shimano CN-HG601
Frame Felt BROAM, SuperLite aluminum
Tires Maxxis Refuse, 700x40 mm,
Brakes Shimano BR-RX400, 2-piston, Hydraulic disc brake
Rotors Front: Shimano SM-RT70, 160 mm, Center lock Rear: Shimano SM-RT70, 140 mm, Center lock
Saddle Selle Royal Essenza Gel
Wheels Devox WheelRDS.A1, Tubeless ready, Center lock, 12x100/12x142 mm
Headset IS (NO.42)
Crankset Shimano GRX, FC-RX600, 46/30 T
Seatpost Devox Post.A3, 330 mm
Shifters Shimano GRX, ST-RX600
Handlebars Devox DBar.A2 GXA 31.8 mm, 460 mm
Rear Derailleur Shimano GRX, RD-RX810, 22-S
Front Derailleur Shimano GRX, FD-RX810
Cassette/Freewheel Shimano CS-HG700, 11-34 T

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Caramel / 54cm / 700c 9010654081523 BBKAA01000054 210000076896
Caramel / 56cm / 700c 9010654081424 BBKAA01000056 210000076897
Caramel / 47cm / 700c 9010654081561 BBKAA01000047 210000076894
Caramel / 51cm / 700c 9010654081578 BBKAA01000051 210000076895
Caramel / 61cm / 700c 9010654081622 BBKAA01000061
Caramel / 58cm / 700c 9010654081530 BBKAA01000058 210000076898
