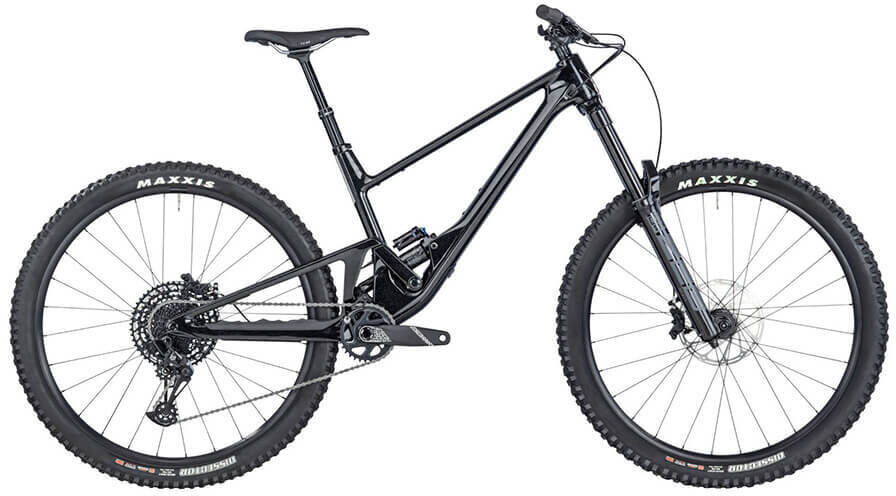

SCOR SCOR 4060 LT NX LRG Midnight Disco
$6,899.00
Details
An enduro bike that squeezes the most out of every trail, the 4060 LT NX is pure concentrated fun. By using a gnar-loving full-carbon frame and pairing it with quality suspension components there's no holding back on how hard you can send it. The bulletproof build kit means you're good to go from the get-go and with everything you need and nothing you don't, you can focus on having fun on the trail ahead.
| S | M | L | XL | |
|---|---|---|---|---|
| Rider Height | 155 - 170 | 165 - 180 | 175 - 190 | 185 - 200 |
| BB Drop (SLACK) | 21 | 21 | 21 | 21 |
| BB Drop (STEEP) | 18 | 18 | 18 | 18 |
| BB Height (SLACK) | 348 | 348 | 348 | 348 |
| BB Height (STEEP) | 351 | 351 | 351 | 351 |
| Chainstay | 432 | 432 | 432 | 432 |
| Fork Length | 580 | 580 | 580 | 580 |
| Fork Rake | 44 | 44 | 44 | 44 |
| Front Center (SLACK) | 773 | 798 | 823 | 853 |
| Front Center (STEEP) | 761 | 785 | 810 | 840 |
| Head Tube | 87 | 99 | 115 | 127 |
| HT Angle (SLACK) | 63.8 | 63.8 | 63.8 | 63.8 |
| HT Angle (STEEP) | 65 | 65 | 65 | 65 |
| Reach (SLACK) | 435 | 459 | 485 | 515 |
| Reach (STEEP) | 431 | 456 | 481 | 511 |
| Seat Tube | 400 | 425 | 440 | 470 |
| ST Angle @750mm Saddle Height (SLACK) | 76.5 | 76.5 | 76.5 | 76.5 |
| ST Angle @750mm Saddle Height (STEEP) | 76 | 76 | 76 | 76 |
| ST Angle Actual (SLACK) | 69 | 69 | 69 | 69 |
| ST Angle Actual (STEEP) | 68.5 | 68.5 | 68.5 | 68.5 |
| ST Angle Effective (SLACK) | 77.9 | 77.9 | 77.9 | 77.9 |
| ST Angle Effective (STEEP) | 77.4 | 77.4 | 77.4 | 77.4 |
| Stack (SLACK) | 601 | 612 | 626 | 637 |
| Stack (STEEP) | 603 | 615 | 629 | 640 |
| Stand Over Height (80 in Front of BB) | 759 | 771 | 775 | 791 |
| Stand Over Height (Lowest Point) | 722 | 731 | 739 | 749 |
| Top Tube (SLACK) | 562 | 590 | 621 | 655 |
Specs
| Frame | SCOR 4060 full carbon frame | Lower-Link Driven Instant Center Linkage | 140 / 160mm rear wheel travel | Fully guided internal cable routing | Stash box | Boost 148 | SRAM UDH | Lower ISCG 05 mount / chainguide |
|---|---|
| Fork | RockShox ZEB Select RC2 | 170mm travel | 44mm rake |
| Rear Shock | RockShox Super Deluxe Select+ RT Hydraulic Bottom Out | 205x65mm Trunnion |
| Tires | Maxxis Assegai 29 x 2.5" 3C MaxxGrip EXO+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R) |
| Rims | XDX-530 | 28 spokes | 6061-T6 alloy | welded joint | 30mm internal width | Tubeless ready |
| Crankset | SRAM Descendant 6K Eagle | 170 mm length | 32T chainring | DUB Interface |
| Shifters | SRAM NX Eagle Trigger |
| Cassette/Freewheel | SRAM NX Eagle (PG-1230) | 11-50T |
| Rear Derailleur | SRAM NX Eagle |
| Rotors | SRAM Centerline | 200mm | 6 bolt |
| Brake Levers | SRAM Code R |
| Handlebars | SCOR Alloy Bar | 31.8mm clamp | 800mm wide | 20mm rise | 5° upsweep | 9° backsweep |
| Chain | SRAM NX Eagle |
| Tape/Grips | VP VPG-125A |
| Stem | SCOR Alloy Stem | 31.8mm bar bore | 35 mm length | 0° angle |
| Seatpost | X-Fusion Manic | S 125mm | M 150mm | L / XL 170mm travel |
| Saddle | WTB Silverado Medium Steel SL |
| Hubs | XDX-530 | 28 spokes | Sealed cartridge bearings |
* Subject to change without notice.
Part Numbers
| Option | UPC | Store SKU |
|---|---|---|
| Midnight Disco / large | 7630027889598 | 210000078718 |
