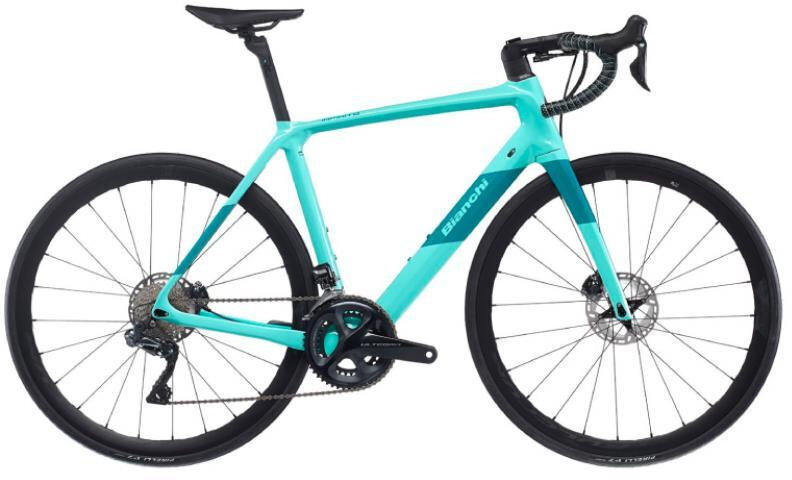

Bianchi BIANCHI Infinito CV Rival eTap AXS CK16/Dark Turquoise 57CM

Bianchi BIANCHI Infinito CV Rival eTap AXS CK16/Dark Turquoise 57CM
$5,500.00
$7,500.00
Color: C-CK16/Dark Turquoise
Size: 57cm
Please select options Unavailable
Order now and pick up in-store for free

Details

The Bianchi range of endurance bikes takes the cutting-edge technology used in our racing bikes and gives it a more comfortable geometry so you can put the miles in without compromising comfort.

Geo Chart

Geometry Chart:
Size47cm50cm53cm55cm57cm59cm61cm
A (mm) 420 450 480 500 520 540 560
B1 (mm) 515 525 535 550 560 575 585
C (mm) 415 415 415 415 415 420 420
D (mm) 68 68 68 68 68 68 68
E (mm) 120 135 150 165 180 195 210
F (mm) 581 583 588 593 599 608 612
G 74.5° 74.5° 74° 73.5° 73.5° 73° 72.5°
G1 70.5° 71.5° 71.5° 72° 72.5° 72.5° 72.5°
H (mm) 43 43 43 43 43 43 43
I (mm) 375 375 375 375 375 375 375
X (mm) 370 375 376 381 386 392 392
Y (mm) 521 539 553 569 585 599 614
WB (mm) 986 988 993 999 1004 1018 1023

Specs

Frame INFINITO Carbon-CV, Disc Brake, Mechanical/Electronic Di2/EPS, TC19, compatible with 32" tire, BBset pressfit 86,5x41, rear dropout 12 x 142mm thru axle
Fork Full Carbon-CV - 28"-300mm - 1,5" Disc Brake, flat mount, thru axle 12x100, compatible with 32" tire
Rims Fulcrum Racing 818 disc brake, aluminium 622x19c 2WF-R Tubeless ready rims
Tires Pirelli P7, 700 x 28c, 60TPI
Bottom Bracket SRAM Press fit Road 86,5x41
Crankset SRAM RIVAL D1 DUB 170 - 172,5 - 175, 46/33
Shifters SRAM RIVAL ETAP AXS D1 Hydraulic Disc Brake
Front Derailleur SRAM RIVAL ETAP AXS D1
Rear Derailleur SRAM RIVAL ETAP AXS D1 MAX 36T
Cassette/Freewheel SRAM CS XG 1250 D1 10-36T
Chain SRAM RIVAL D1 12S
Rotors SRAM Rotor centerlock centerline Road 160mm
Brake Levers Included in the shifter
Handlebars Reparto Corse JD-RA35A.2 Compact Flat Top, alloy 2014 diam. 31,8mm, reach 80mm, drop 130mm
Tape/Grips Black soft Microfiber tapes w/shockproof Eva-139
Stem Reparto Corse ST236A, 3D Forged alloy 6061, raise +/ - 7°, height 38mm, Oversize, 1 1/8"
Headset FSA NO.42/47CF/ACB/5D, 1-1/8 ACB Top, 1.5"
Seatpost Reparto Corse Full Carbon special dimension; special Clamp type with alloy head adjustable and reversible +/- 35mm
Saddle Fi'zi:k Argo Tempo R5, nylon carbon reinforced shell w/WingFlex, rail S alloy, 260x150mm

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
C-CK16/Dark Turquoise / 57cm YSB50I57IC 210000076007
