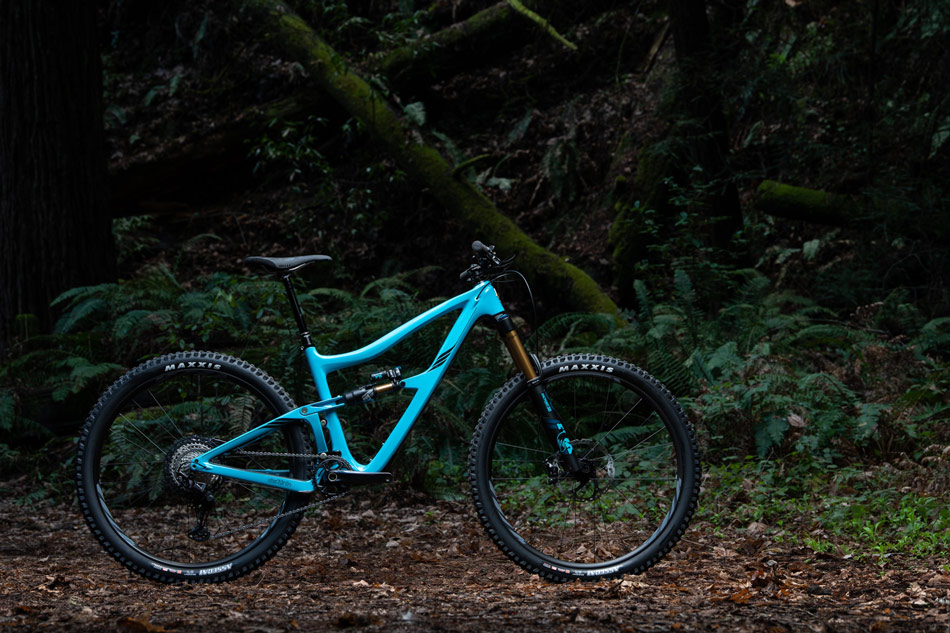

IBIS RIPMO
RIPMO
Shred and climb.
What if we took everybody’s favorite bike and made it a little slacker and little longer? Hell, what if we made it more progressive and coil compatible? And that’s exactly what we did for the Ripmo V2. Active ingredients include: 29” wheels, berm-defying cornering tendencies, and a love for long rides.
FACTS
• 29” Wheels
• 160mm front travel
• 147mm dw-link rear travel
• 2.6” tire clearance
• Carbon front and rear triangle
• Available in four sizes S-XL, fits riders between 5’ and 6’6
• Frame weight of 6.3 lbs / 2.86 kg w/ DPX2, 6.74 lbs / 3.09 kg w/ X2
• Complete builds starting at 28.2 lbs
DETAILS
• One degree slacker 64.9 head angle
• More progressive suspension leverage ratio
• Compatible with select coil shocks.
• 44mm fork offset
• Steep 76 degree seat tube angle
• Threaded BB (73mm BSA)
• ISCG 05 compatible with removable adapter
• In-frame molded cable tunnels
• 26oz bottles fit inside front triangle, size M-XL (Arundel side loader cage recommended)
• Size M-XL compatible with 170mm+ droppers, 125-150mm for smalls
• Polycarbonate downtube protector and molded rubber swing arm protectors
• IGUS bushings in lower link, bearings in upper link
• Metric 210x55 shock
• 203mm max rotor size
• 1x specific design
• Boost spacing
• Tapered headtube and steerer: ZS44 upper, ZS56 lower
